Temporary Crown on an Implant Replacing a Maxillary Central Incisor: Can You Clarify the Procedure?

Last Updated: May 18, 2009

Dr. F. asks:
I attended a dental implant meeting where several lecturers demonstrated how to make a temporary crown on an implant replacing a maxillary central incisor. They extracted the tooth atraumatically, leaving the buccal plate and papillae intact. They screwed in either a temporary or definitive abutment and then proceeded to make the temporary crown. Each took a polycarbonate crown shell or a custom temporary acrylic crown and relined it partially in the mouth to get the crown to fit to the incisal half of the abutment. Then they somehow made an impression of the abutment and surrounding soft tissue and somehow finished the rest of the temporary crown on the abutment out of the mouth using a model of their impression. How did they get the impression of the temporary crown, abutment and surrounding soft tissue? I do not understand this part of the procedure? Does anybody know how to do this?

5 Comments on Temporary Crown on an Implant Replacing a Maxillary Central Incisor: Can You Clarify the Procedure?

Eric Yabu

05/19/2009

I'm not sure how they got the impression of the gingival contour, but they may have used the actual abutment (or another abutment of the same dimensions) to complete the relining of the polycarbonate crown.

Mike Heads

05/20/2009

Many implant systems have temporary abutments that also come with temporary sleeves (I use Nobel Biocare and it is dead easy). I roughen the sleeve and reline the temporary composite (lab made) shell crown onto the temporary sleeve/abutment using a composite based temporary material eg luxatemp, protemp etc, remove the crown which is now attached to the sleve whilst it is still rubbery so that any excess will come out of the interproximal undercuts. Fill in any voids between the temporary crown/luxatemp and the sleeve with a flowable composite. I then trim up the excess to the edge of the sleeve (which is a perfect fit to the temporary abutment)and try it back in and adjust the emergence profile further if required so that it fits perfectly into the shape of the soft tissue from the extraction socket. I glaze it and place a vent hole palatally and cement with a small amount of temporary cement. A perfect fit and no cement into the gingival margin. It also has the advantage that as it is such a good fit if you have had to place any bone augmentation material round the implant to fill the socket this is held in place perfectly. This system is so predictable it is unblievably successful.

Alejandro Berg

05/20/2009

If the implant is correctly placed is easy, you have a pre made acrylic shell with the aprox shape and colour that you want and a palatal access hole. place the temp abutment,screw it on, place the shell with some composite resin (flowable)and cure it. remove the abutment with the shell attached, clean and finish relining with flowable resin, put in place , check occlusion and if the contour is ok, seal. if not , remove, apply resin, cure and replace, then seal. if the implant is emerging through vestibular, use an angulated abutment, and repeat the same sequence(there is no access hole and you have to cement the shell after the procedure is done but is pretty much the same.) the other way is to take a direct implant impression with sterile silicone and make everything in the lab... is good too but it takes longer. bets of luck.

Gerald Rudick

05/20/2009

Dr. F.....making a temporary crown for an immediately placed implant should be no different from the way you usually make temporary crowns on natural teeth. If you are worried about contaminating the surgical site with acrylic or composite, then you can simply cut a small piece of rubber dam, punch a hole and place it over the abutment. Put a separating medium on the abutment, fill the poly shell with what ever material you will use, and gently press and lift as the material is setting.... you do not want to get caught on any undercuts or striations on the abutment. Do it chairside,very fast to do, and you will save on the lab fee..... do pass the saving on to your patient. Gerald Rudick dds Montreal, Canada

Paul Dawood

05/23/2009

Any anterior temporary crown should be made with only screwed -in temporary abutment, using a direct shell or an indirect prefabricated lab crown then bond it to the temporary abutment. I have learned (the hard way) that cementing an anterior temporary is disastrous, especially when gingival contouring is required to optimize the emergence profile. The sulcus will also be so much better for the final impression.

Featured Products

DALI Bone Mix

DALI Bone Mix

The highest quality tissue!

Classic

Classic 50/50 Mix

Promotes osteoconduction

Provides structural integrity

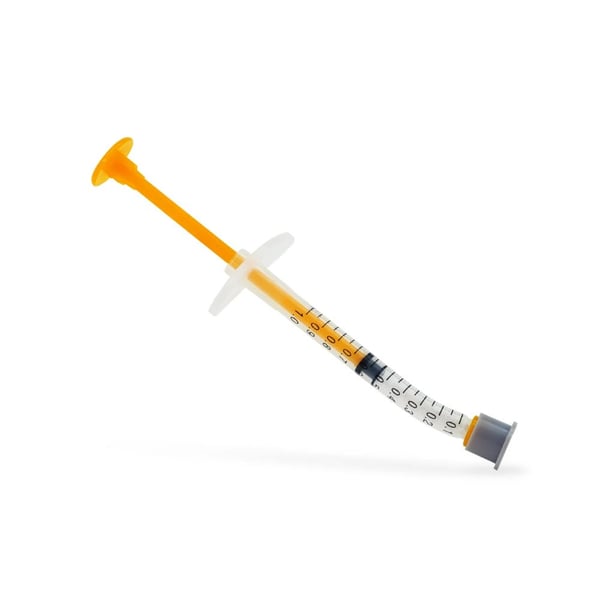

DALI Bone Syringe

DALI Bone Syringe

Prefilled Mineralized Cortico-Cancellous Bone in Syringe

New

Convenient Syringe!

50/50 Cortical/Cancellous

Available in 3 sizes.

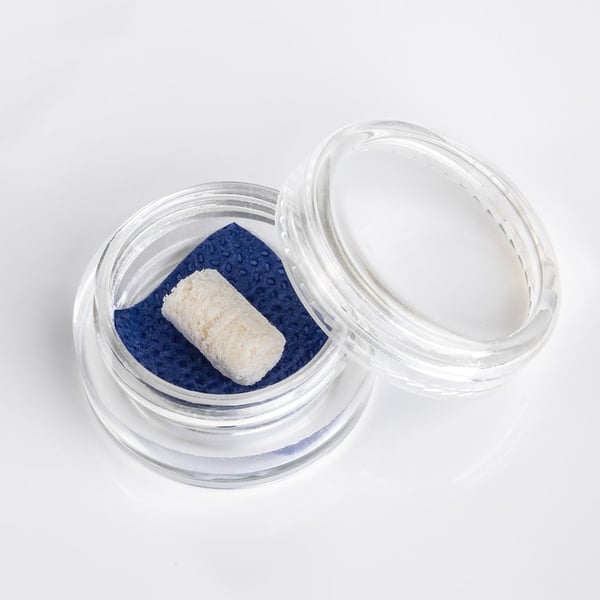

Osteogen Plug
